Single Arm and Other Stationary Switches
Stationary Switch Replacement Parts
For repair of motors which utilize a single-arm stationary switch.
Item # |
Motor Manufacturer |
Bearing |
Figure Image |
LH Contact |
RH Contact |
Contact Diameter |
# of Sets |
Mounting Centers |
Important Note |
List Price |
|---|---|---|---|---|---|---|---|---|---|---|

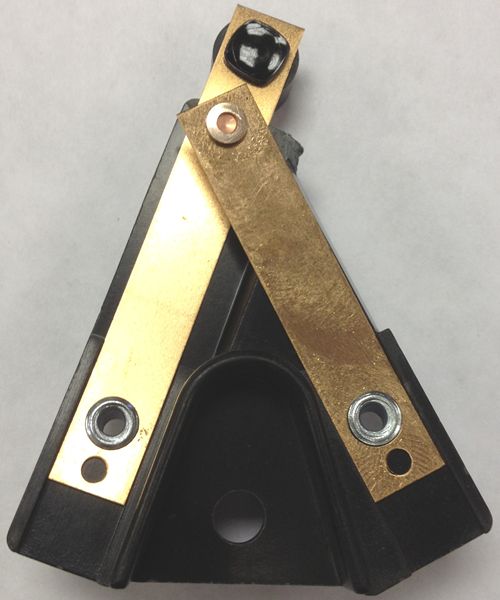

| S-7076 S-7076/Asset/NB.jpg | Motor Manufacturer N/A STA Rite (A.O. Smith) | Bearing N/A SA |
Figure Image
 NB |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in2 3/8 in |
Important Note
N/A Terminals are on opposite side of board from standard A.O.SMITH 614234-001. |
$16.30 |

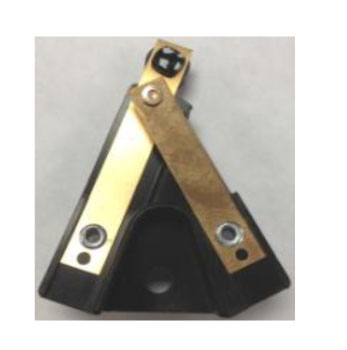

| S-7060 S-7060/Asset/a1233.jpg | Motor Manufacturer N/A A.O. SMITH | Bearing N/A SA |
Figure Image
 BG |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in2 3/8 in |
Important Note
N/A Replaced by torq 36C12700. |
$13.91 |
| S-8014 S-8014/Asset/BA.jpg | Motor Manufacturer N/A BALDOR | Bearing N/A |
Figure Image
 BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $21.79 |
| S-7115 S-7115/Asset/BT.JPG | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 BT |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $18.27 |

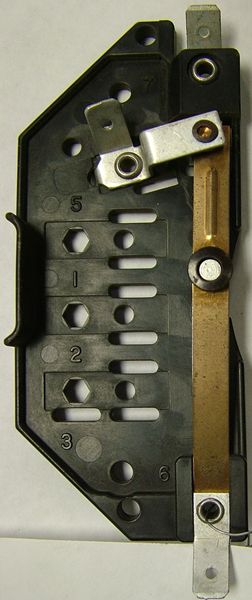

| S-7116 S-7116/Asset/BU.JPG | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 BU |
LH Contact N/A | RH Contact N/A D.T. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $21.84 |

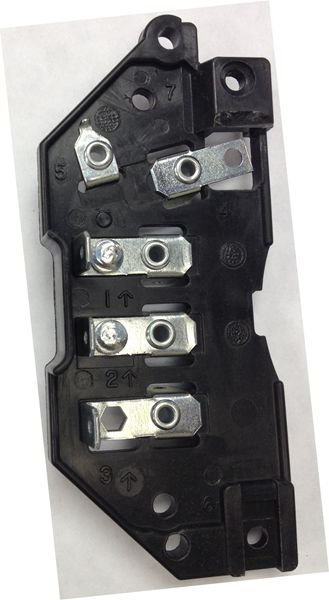

| S-7121 S-7121/Asset/NR.jpg | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 NR |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $21.68 |

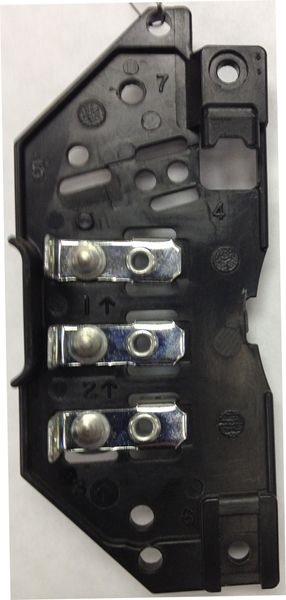

| S-7122 S-7122/Asset/NS.jpg | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 NS |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $20.90 |

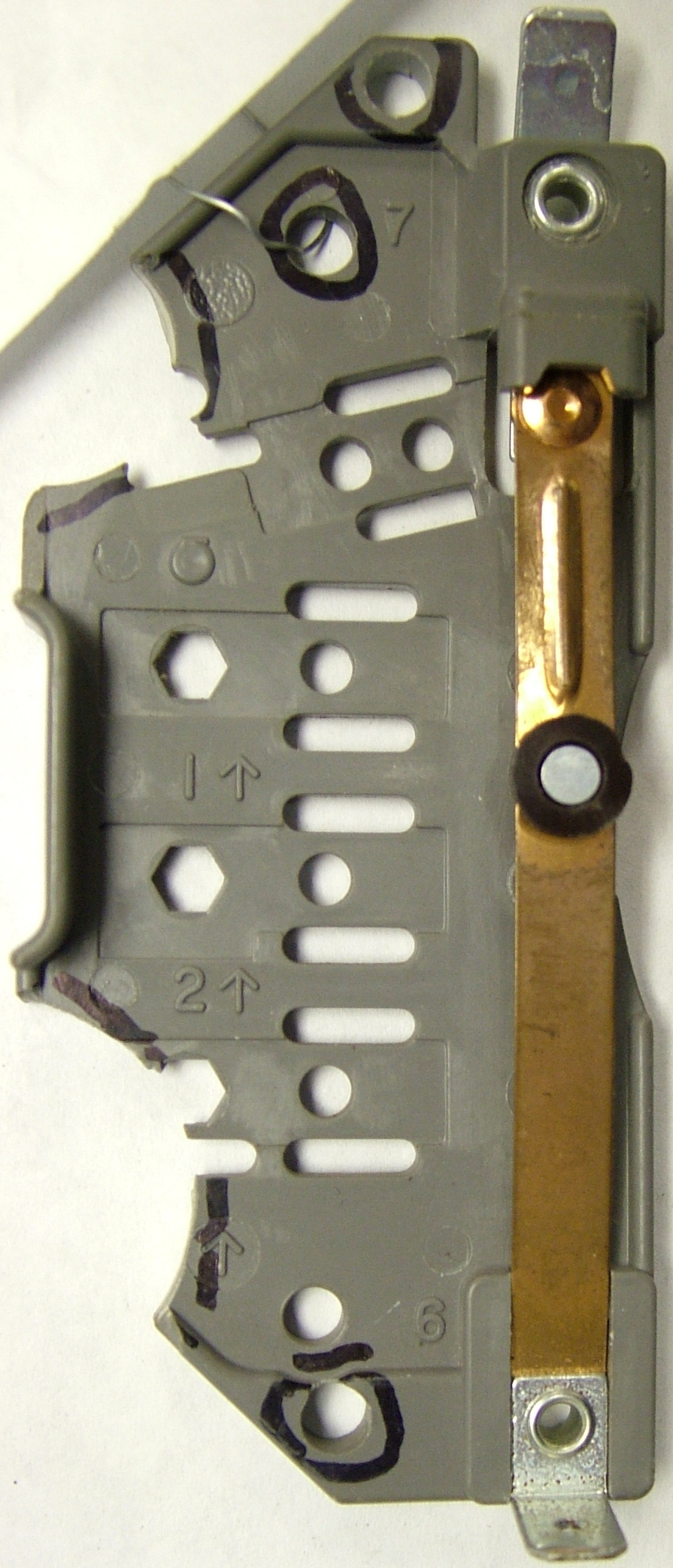

| S-7117 S-7117/Asset/BV.JPG | Motor Manufacturer N/A BLUFFTON | Bearing N/A SA |
Figure Image
 BV |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 13/32 in | Important Note N/A | $17.50 |

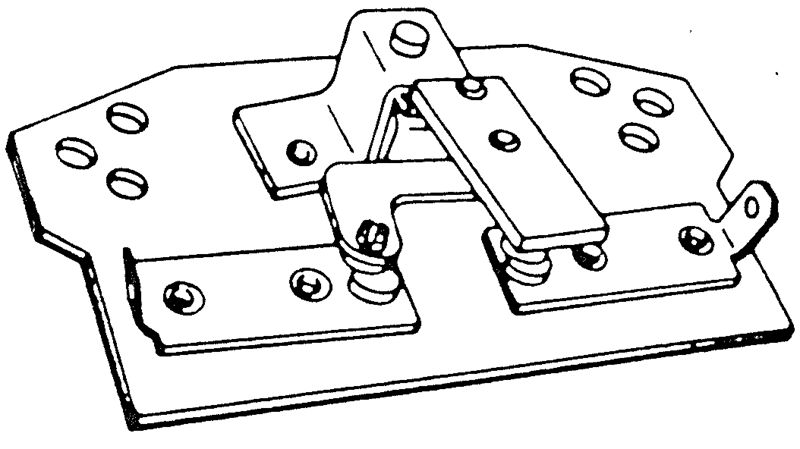

| S-8024 S-8024/Asset/NE.JPG | Motor Manufacturer N/A CENTURY | Bearing N/A SA |
Figure Image
 NE |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 15/16 in2 3/4 in3 3/8 in | Important Note N/A | $33.76 |

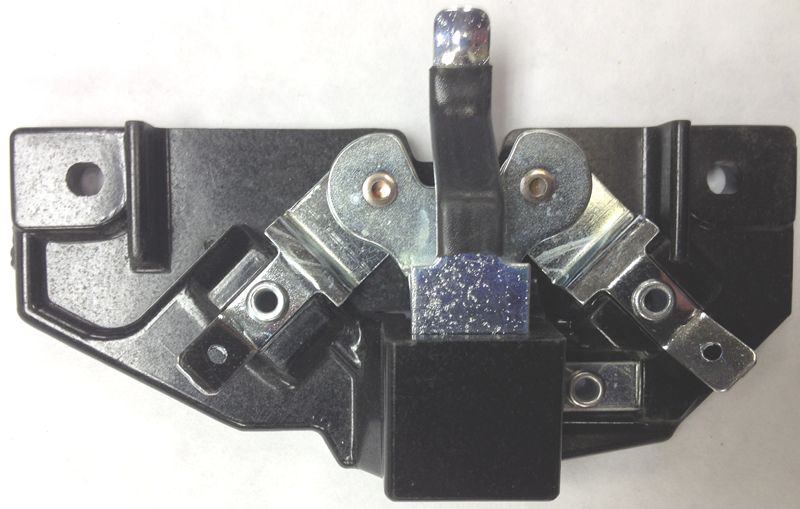

| S-8005 S-8005/Asset/AZ.jpg | Motor Manufacturer N/A DAYTON | Bearing N/A SA |
Figure Image
 AZ |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 3 in | Important Note N/A | $25.36 |
| S-7026 S-7026/Asset/BD-F.jpg | Motor Manufacturer N/A DAYTON | Bearing N/A SA |
Figure Image
 BD |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 3/16 in | Important Note N/A | $28.34 |

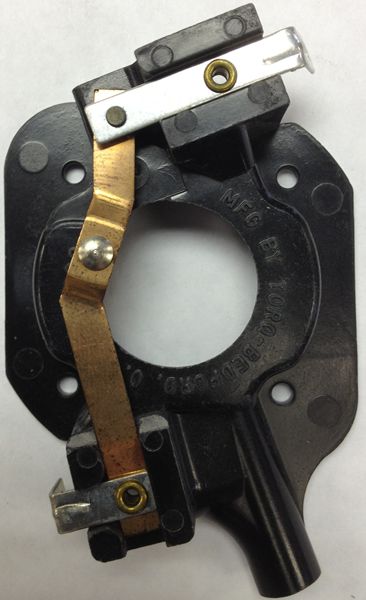

| S-6018-OBSOLETE S-6018-OBSOLETE/Asset/BS.jpg | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
 BS |
LH Contact N/A N.C. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 9/16 in | Important Note N/A OBSOLETE | $0.00 |

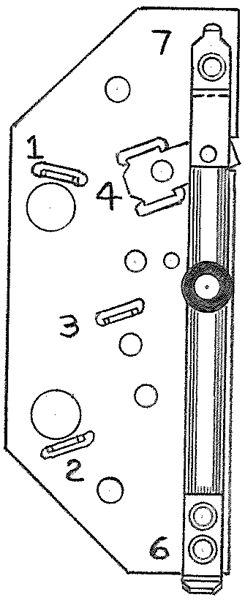

| S-7078 S-7078/Asset/FU.JPG | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
 FU |
LH Contact N/A | RH Contact N/A | Contact Diameter N/A | # of Sets N/A 0 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $20.77 |
| S-7057 S-7057/Asset/FU.JPG | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $24.05 |
| S-7057 S-7057/Asset/FU.JPG | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $24.05 |
| S-7063 S-7063/Asset/FU.JPG | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $26.51 |
| S-7057 S-7057/Asset/FU.JPG | Motor Manufacturer N/A FASCO | Bearing N/A SA |
Figure Image
FU |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in | Important Note N/A | $24.05 |

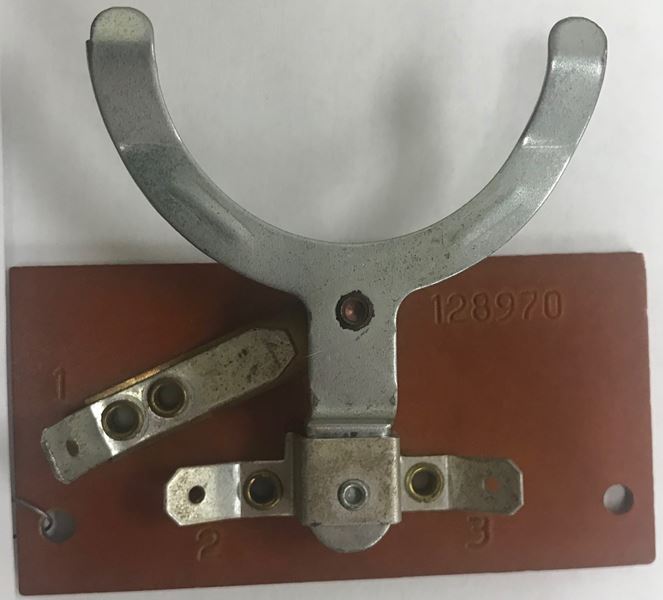

| S-7003 S-7003/Asset/BA.jpg | Motor Manufacturer N/A FLINT & WALLING | Bearing N/A SA |
Figure Image
 PD |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 5/8 in |
Important Note
N/A Yoke type. |
$21.58 |

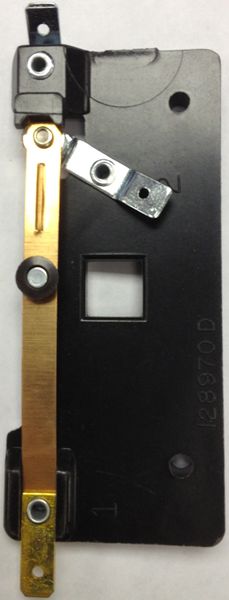

| S-7004 S-7004/Asset/BB.jpg | Motor Manufacturer N/A FLINT & WALLING | Bearing N/A SA |
Figure Image
 BB |
LH Contact N/A | RH Contact N/A N.O. | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 2 5/8 in |
Important Note
N/A Reed type. |
$18.80 |

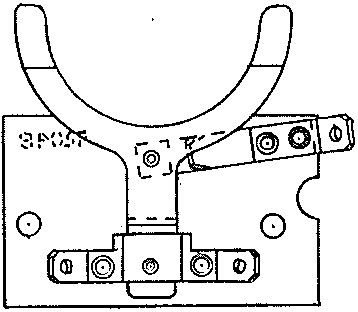

| S-7006 S-7006/Asset/FZ.JPG | Motor Manufacturer N/A HOWELL | Bearing N/A SA |
Figure Image
 FZ |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Yoke type. |
$21.05 |

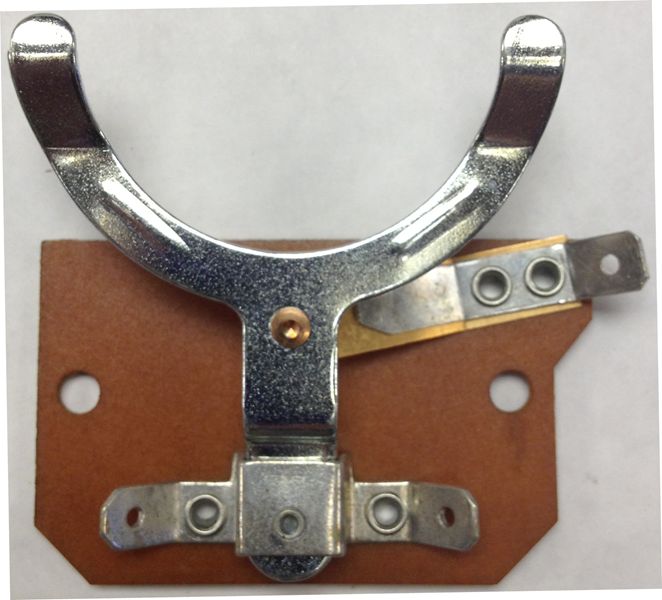

| S-7009 S-7009/Asset/FG.jpg | Motor Manufacturer N/A HOWELL | Bearing N/A SA |
Figure Image
 FG |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 1 7/8 in |
Important Note
N/A Yoke type. |
$21.05 |
| S-8014 S-8014/Asset/BA.jpg | Motor Manufacturer N/A LEESON | Bearing N/A SA |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $21.79 |

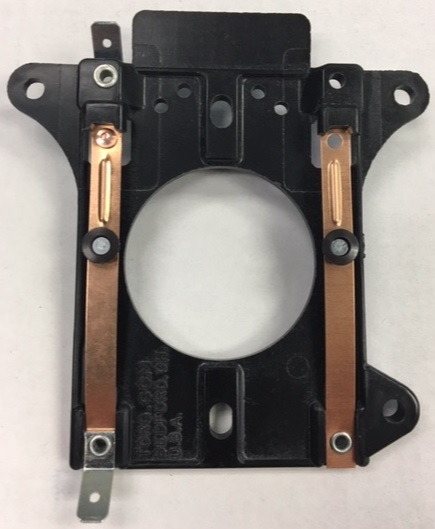

| S-7077 S-7077/Asset/NY.jpg | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A 203 |
Figure Image
 NY |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 1/4 in | # of Sets N/A 1 | Mounting Centers N/A 2 3/4 in3 5/16 in | Important Note N/A | $22.52 |
| S-8014 S-8014/Asset/BA.jpg | Motor Manufacturer N/A MAGNETEK - ALSO SEE CENTURY ELECTRIC | Bearing N/A |
Figure Image
BA |
LH Contact N/A N.O. | RH Contact N/A N.O. | Contact Diameter N/A 3/8 in | # of Sets N/A 2 | Mounting Centers N/A 2 1/2 in | Important Note N/A | $21.79 |

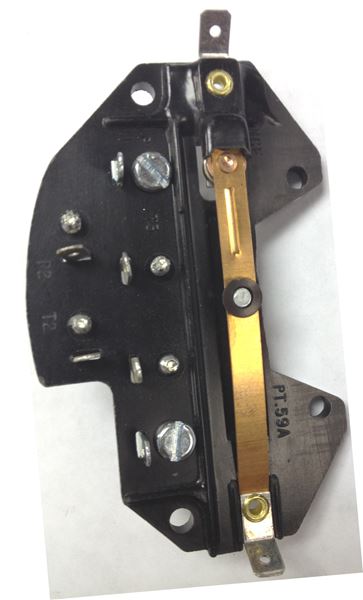

| S-7100 S-7100/Asset/MR-F.jpg | Motor Manufacturer N/A RELIANCE ELECTRIC | Bearing N/A SA |
Figure Image
 MR.F |
LH Contact N/A N.O. | RH Contact N/A | Contact Diameter N/A 5/16 in | # of Sets N/A 1 | Mounting Centers N/A 1 13/16 in3 1/4 in | Important Note N/A | $30.98 |
